The drive wheel and guide wheel are made of special alloy steel and heat-treated, which are more wear-resistant and have a longer service life.
The supporting wheel is cast in one piece, which is stronger; the supporting shaft is thicker and has a bending coefficient of 331MPa.
The eccentric disc is stamped as a whole, which is stronger; the feed inlet bottom plate and guide plate are made of special alloy steel, which is more wear-resistant.
The auger of the whole vehicle is made of special alloy steel and heat-treated, which is more wear-resistant and has a longer service life.
The drive wheel has good wear resistance
The guide skid has good wear resistance and the supporting wheel has high strength
The eccentric disc has high strength
The auger has good wear resistance
Changfa 140 horsepower high-pressure common rail diesel engine, three working modes, low vibration, low noise, more fuel-efficient; 210-liter fuel tank is larger.
The gearbox has full-engagement sleeve shifting, and the gear shifting will not be disengaged; the steering shaft and steering gear are strengthened, and the steering is more reliable.
The 2.26-meter-long threshing drum and larger vibrating screen can smoothly harvest high-yield crops without grain loss, making it cleaner.
4m grain unloading drum, 1.2-5.1m span grain unloading height, 360° wide range, full grain unloading within 90 seconds; grain unloading drum one-button return function.
Powerful
Not afraid of bad fields
Efficient cleaning
Fast grain unloading

Powerful power and long-lasting battery life
Feeding amount
7 kg
Power
120 horsepower
Cutting width
2.2/2.36 meters

Technology upgrade, outstanding performance
Drum length
2.26 m
Fuel tank capacity
210 liters
Granary volume
2 m³

High operating efficiency, comfortable operation and wide adaptability
HST
52 CC
Gearbox
CF100
Weight
4100 kg




The drive wheel has good wear resistance
The drive wheel and guide wheel are made of special alloy steel and heat-treated, which are more wear-resistant and have a longer service life.
The guide skid has good wear resistance and the supporting wheel has high strength
The supporting wheel is cast in one piece, which is stronger; the supporting shaft is thicker and has a bending coefficient of 331MPa.
The eccentric disc has high strength
The eccentric disc is stamped as a whole, which is stronger; the feed inlet bottom plate and guide plate are made of special alloy steel, which is more wear-resistant.
The auger has good wear resistance
The auger of the whole vehicle is made of special alloy steel and heat-treated, which is more wear-resistant and has a longer service life.




Powerful
Changfa 140 horsepower high-pressure common rail diesel engine, three working modes, low vibration, low noise, more fuel-efficient; 210-liter fuel tank is larger.
Not afraid of bad fields
The gearbox has full-engagement sleeve shifting, and the gear shifting will not be disengaged; the steering shaft and steering gear are strengthened, and the steering is more reliable.
Efficient cleaning
The 2.26-meter-long threshing drum and larger vibrating screen can smoothly harvest high-yield crops without grain loss, making it cleaner.
Fast grain unloading
4m grain unloading drum, 1.2-5.1m span grain unloading height, 360° wide range, full grain unloading within 90 seconds; grain unloading drum one-button return function.

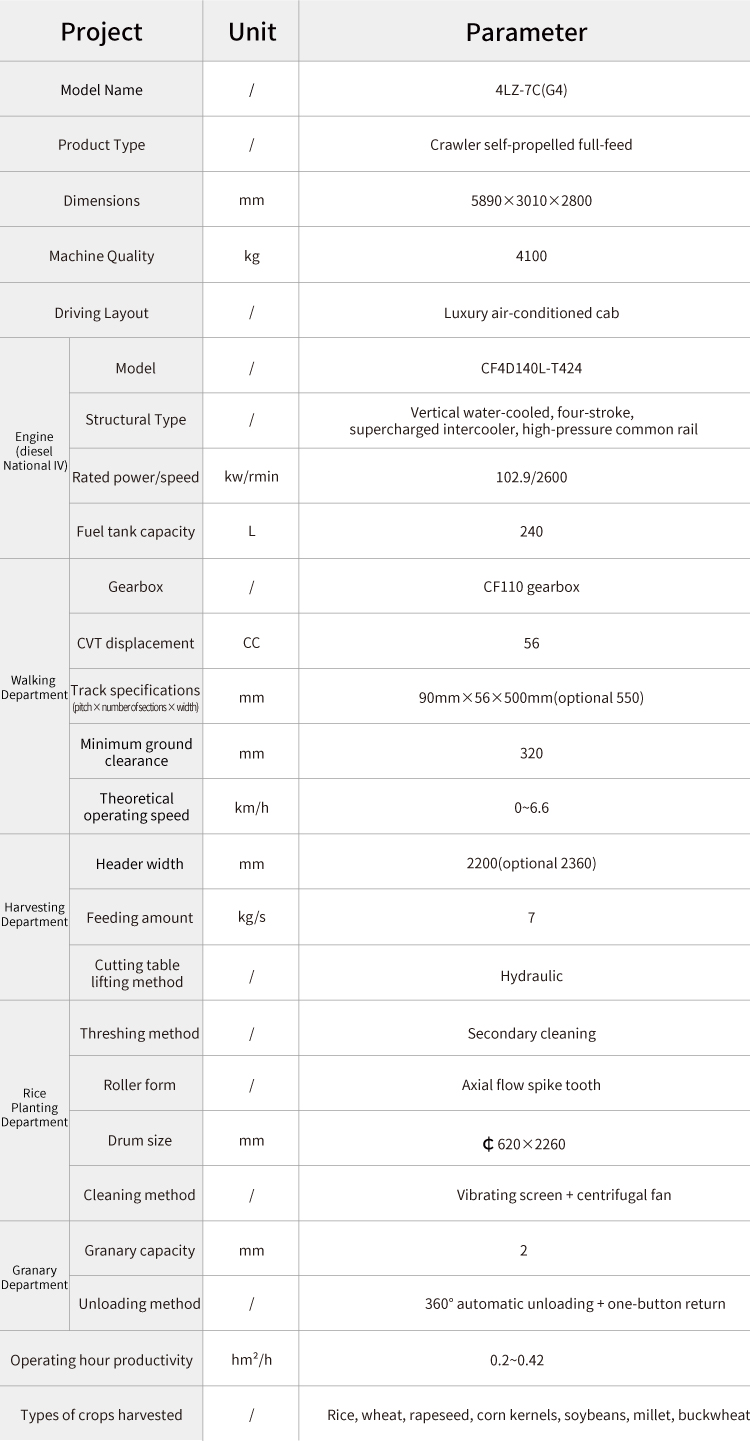

Technical Parameter
